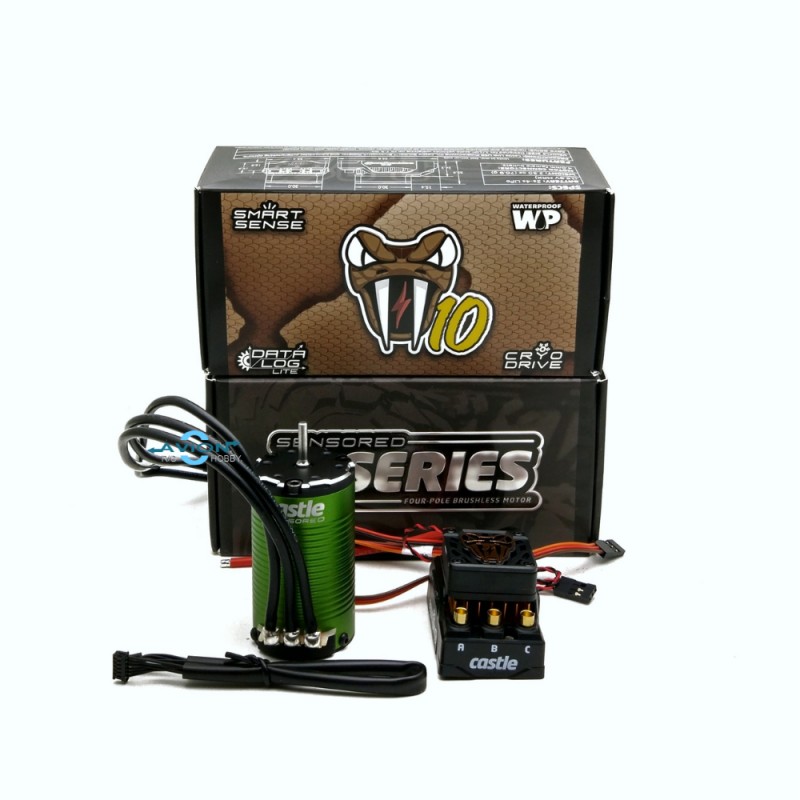

COPPERHEAD 10 SENSORED ESC SCT W / 1412-3200KV SENSORED
Produk baru
SCT COMBO : 1412-3200Kv
APPLICATION : 2s-4s on 2WD/4WD SC Trucks
MAX VEHICLE WEIGHT : Vehicles weighing up to 6.5 lbs. ready-to-run
Features :
- Programming : Castle Link USB Programming Kit, Catle B-LINK Bluetooth® adapter and Transmitter programming option.
- Cryo dive : Hardware and software working together to provide cooler temps, longer runs, and more power.
5 item
Info lainnya

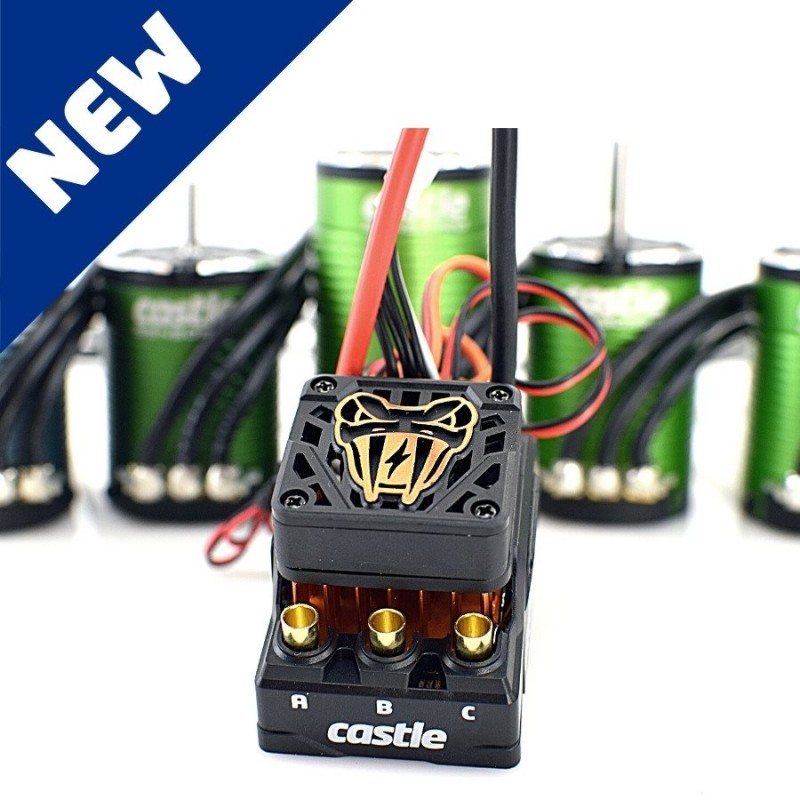

ESC Specs
• Application Guidelines: 1:10 scale vehicles Input
• Voltage Range: 2s-4s (16.8V Max)
• Running Modes: SMARTSENSE™, Sensored Only and Brushed Motor Operation
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes, waterproof
• Cooling Fan: Yes, factory equipped (30mm), fully removable** and includes dual use fan guard (See Operating Use Statements)
• Size: 2.19" x 1.39" x 1.33"
• Weight (with wires): 70.9 g / 2.50 oz.
• Motor Connectors: 4.0mm female bullets for motor connection
• Items Needed for Operation: Battery Connector required, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.

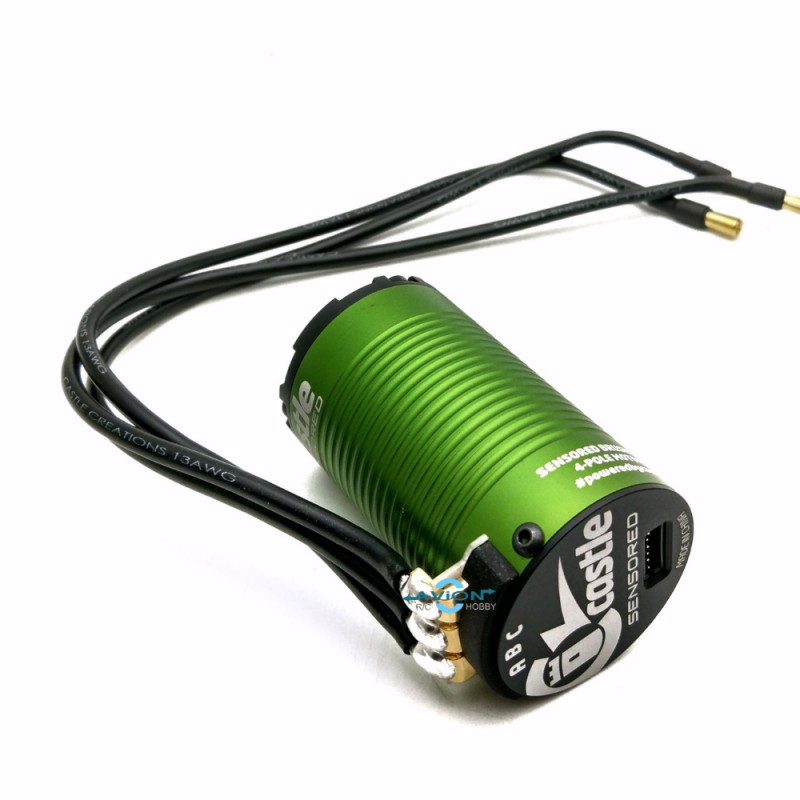

Motor Specs
• Input Voltage Range: 2s-4s
• Kv: 3200
• Max. RPM: 75,000
• Motor Size: Length: 62.5mm Diameter: 36mm
• Shaft Size: Length: 15mm
• Diameter: 1/8" (3.17mm)
• Weight (w/wires): 265.4g (9.4oz)
• Mounting Hole Specifications: M3 @ 25mm
• Cooling Fan: Optional - Coming Soon
• Connectors: 4mm male Castle Bullet Connectors
• Items Needed for Operation: Compatible Electronic Speed Control (ESC)
• Running Modes: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode
• Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SC Trucks up to 6.5lbs and up to 4s operation. Max.
• Recommended Vehicle Weight: Vehicles weighing up to 6.5 lbs. ready-to-run.
• Waterproof
